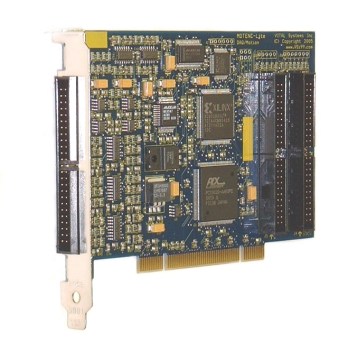

The MOTENC-Lite PCI board is designed for PC based real-time systems controlling machines that require precision motion control.  These include, CNC machines, Routers, Pick and Place machines, Robots and so on.  The board has all the necessary components to implement a precision digital feed back control system.  Analog outputs from the board drive the Motor Amplifiers using industry standard ±10V interface.  The position feedback is generated by the quadrature encoder counters using 32-bit resolution.  Utilizing the full 32-bit PCI bus, the board allows reading the 32-bit counter in just one read cycle.  The Analog output settling time is just under 5 micro-sec and  the CPU read-write cycle times are within 500 nano-sec.  This allows the PID feedback loop update rate of 20KHz or more.  The board has digital I/O to connect home, limit, and other switches and relays to implement a complete control system.

The MOTENC-Lite board is supported on EMC/EMC2 (Enhanced Machine Control) software. EMC is a software system for computer control of machine tools such as milling machines. More info available at  www.LinuxCNC.org.

Product Highlights:

• Eight Channels Analog Outputs, Range ±10V, 13-Bit Resolution

• Eight Channels Analog Inputs, Range ±5Volts, 14-bit Resolution

• Four Differential Quadrature Encoder Inputs. 32-Bit Resolution

• 2Mhz Max encoder frequency. Encoder resolution is multiplied by 4 in hardware

• 48 Digital I/O (32 Inputs & 16 Outputs) in two 50-pin headers. Opto-22 compatible

• 10 additional Digital I/O (6 Input,4 Output) on two SIP headers.

• Programmable Timer Interrupts

• Watch Dog Timer

• Optional Hardware ESTOPs Input Signals (Jumpers on board to override if not needed)

• Hardware Board ID for multiple board applications

Note: We now offer 7541 version only. 7544 version is now obselete bacause of lack of demand.
